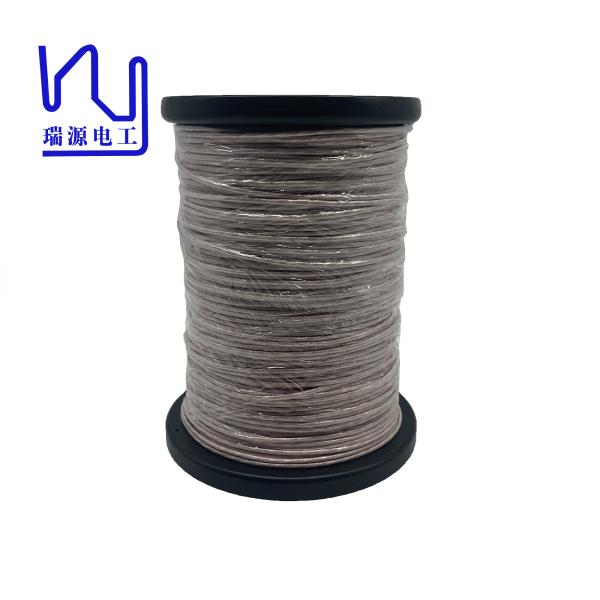

0.2mm X 84 High Frequency Nylon Serving Copper Litz Wire

Name: 02mm X 84 High Frequency Nylon Serving Copper Litz Wire
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : USTCF litz wire

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : TT/Paypal

Supply Ability : 100kg/week

Delivery Time : 7 days

Packaging Details : Carton

Breakdown voltage : Min. 2000V

Number Of Strands : 84

Jacket : Real Silk

Theraml grade : 155

Key word : 0.2mm X 84 High Frequency Nylon Serving Copper Litz Wire

Conductor Material : Copper

Product name : 0.2mm X 84 High Frequency Nylon Serving Copper Litz Wire

Single Wire : 0.2mm

Contact Now

0.2mm X 84 High Frequency Nylon Serving Copper Litz Wire

One of the main advantages of nylon served litz wire is its enhanced mechanical strength and durability. The nylon covering provides protection to each wire from damage caused by external factors such as abrasion, bending, and stretching. This ensures the longevity and reliability of the wire, making it suitable for demanding applications, especially in high-frequency transformers where consistent performance is critical.

Item	Standard	Test value
Item	Standard	Sample 1	Sample 2	Sample 3
Single wire diameter mm	0.224-0.246	0.225	0.227	0.228
Conductor Diameter mm	0.2±0.003	0.2	0.2	0.2
O.D. mm	Max. 2.74	2.65	2.6	2.63
Resistance (20℃) Ω/m	6.87	ok	ok	ok
Breakdown Voltage V	Min.2000	3900	3800	3700
Pitch mm	44±5%	44	44	44
