Class B 0.04 - 0.4mm Ultra Fine Enameled Copper Wire FIW Wire

Name: Class B 004 04mm Ultra Fine Enameled Copper Wire FIW Wire
Brand: Ruiyuan
Price: 1 USD

Wholesale Class B 0.04 - 0.4mm Ultra Fine Enameled Copper Wire FIW Wire from china suppliers

Brand Name : Ruiyuan

Model Number : 0.04 - 0.4mm

Certification : UL/ROHS/ICE/ISO9001/ISO14001

Place of Origin : China

MOQ : 20 Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Delivery Time : 2-15 days

Packaging Details : plastic spools (PT2-PT200), wooden case

Supply Ability : 200 Ton/Tons per Month

Product name : FIW Wire

Conductor material : Copper

Conductor type : Solid

Size : 0.04-0.4mm

Insualtion material : enamel

Port : Tianjin, China

Contact Now

0.04 - 0.4mm FIW WIRE ULTRA FINE ENAMELED COPPER WIRE

Fully insulated (FIW) zero-defect enamelled round copper wire ,class 180,is wire with high thermal class, Zero-defect strengthened insulation and high voltage resistance compliance with IEC60317-56.The wire can meet the requirements of miniaturized components, good winding performance and low cost, applied small transformer, electronic switch etc. The wire is the best substitute material for TIW(Triple Insulated Wire).

FEATURES AND BENEFITS

High thermal class 180;(only 105-130 for TIW);
High break down voltage,＞15KV;
High insulation resistance,6000Vrms,1min;
Solderable, 390℃,2s；(no need to peel insulation);
High cut-through temperature, 250℃,2s no cut through, Air Reflow(260℃), no crack；
Very good winding performance, suitable for high speed winding machine.
Small size available, minimum dia 0.040mm, no extruded wire in such size is available;

APPLICATION

- Transformer for measuring instrument
- For communication : High frequency coil for transformer, Coil for power source transformer
- For power generation : Coil for electromagnetic switches, solenoid coil, Coil for lighting fixtures
- Coil-micro-motor, electric fan, transformer & etc.

PECIFICATION

bare wire dia	Tolerance	resistance (Ω,20℃)		Over all dia (mm)
(mm)	(mm)	Min	Max	FIW6		FIW8		FIW10
(mm)	(mm)	Min	Max	min	max	min	max	min	max
0.040	±0.002	12.23	15.20	0.080	0.089	0.100	0.109	-	-
0.050	±0.002	7.981	9.528	0.095	0.105	0.117	0.127
0.060	±0.002	5.614	6.526	0.113	0.125	0.139	0.151	-	-
0.070	±0.003	4.050	4.890	0.123	0.135	0.149	0.161	0.175	0.187
0.080	±0.003	3.133	3.703	0.137	0.150	0.165	0.178	0.193	0.206
0.090	±0.003	2.495	2.900	0.149	0.162	0.177	0.190	0.205	0.218
0.100	±0.003	2.034	2.333	0.165	0.180	0.197	0.212	0.229	0.244
0.120	±0.003	1.426	1.604	0.195	0.212	0.231	0.248	0.267	0.284
0.160	±0.003	0.8122	0.8906	0.250	0.271	0.294	0.315	0.338	0.359
0.180	±0.003	0.6444	0.7007	0.278	0.301	0.326	0.349	0.374	0.397
0.200	±0.003	0.5237	0.5657	0.303	0.327	0.353	0.377	0.403	0.427
0.250	±0.004	0.3345	0.3628	0.373	0.402	0.433	0.462	0.493	0.522
0.300	±0.004	0.2335	0.2506	0.432	0.462	0.494	0.524	-	-
0.350	±0.004	0.1722	0.1834	0.486	0.516	0.548	0.578	-	-
0.400	±0.005	0.1316	0.1407	0.541	0.571	0.603	0.633	-	-

Weight vs length

Bare wire dia	FIW weight per Km(KG/km)					FIW length per Kg (km/KG)
(mm)	FIW6	FIW7	FIW8	FIW9	FIW10	FIW6	FIW7	FIW8	FIW9	FIW10
0.070	0.046	0.048	0.053	0.057	0.061	21.80	20.80	19.00	17.50	16.50
0.080	0.057	0.063	0.066	0.071	0.077	17.40	16.00	15.00	14.00	13.00
0.090	0.071	0.077	0.081	0.086	0.091	14.20	13.00	12.40	11.70	11.00
0.100	0.089	0.094	0.101	0.107	0.113	11.30	10.60	9.90	9.40	8.80
0.120	0.127	0.133	0.142	0.151	0.160	7.90	7.50	7.00	6.60	6.30
0.160	0.22	0.232	0.244	0.257	0.271	4.56	4.31	4.10	3.90	3.70
0.200	0.337	0.353	0.370	0.388	0.405	2.97	2.84	2.71	2.58	2.48
0.250	0.524	0.547	0.572	0.599	0.627	1.91	1.83	1.75	1.67	1.60
0.300	0.738	0.763	0.794	0.824	-	1.36	1.31	1.26	1.22	-
0.350	0.980	1.020	1.047	1.086	-	1.02	0.98	0.96	0.92	-
0.400	1.268	1.301	1.336	-	-	0.79	0.77	0.75	-	-
0.450	1.581	1.617	1.655	-	-	0.64	0.62	0.61	-	-
0.500	1.968	2.023	-	-	-	0.51	0.50	-	-

Product Tags:

enameled round copper wire

copper magnet wire

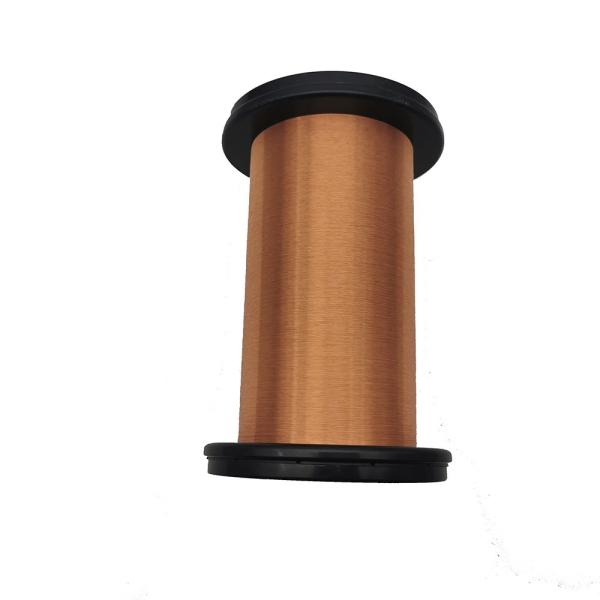

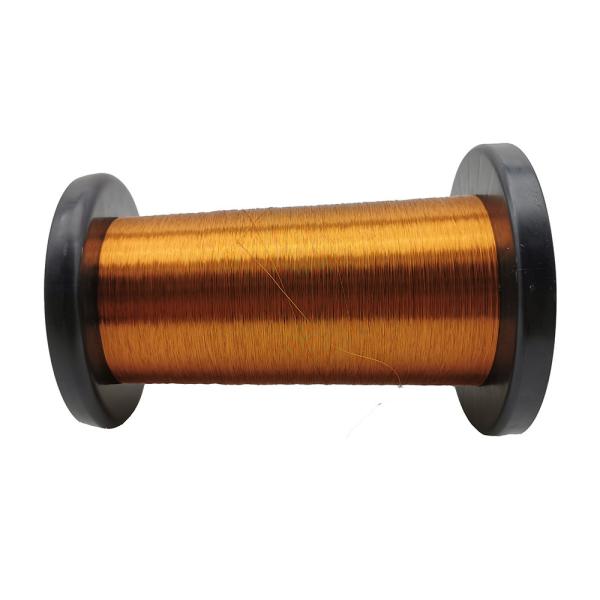

Class B 0.04 - 0.4mm Ultra Fine Enameled Copper Wire FIW Wire Images
