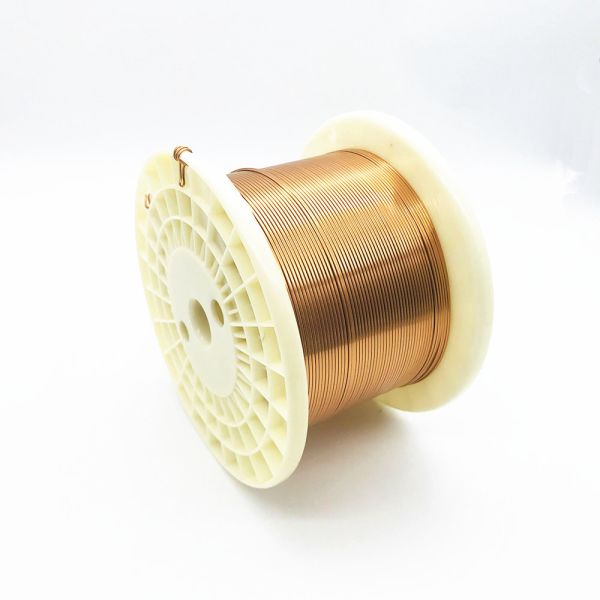

Class 180 0.7 x 0.15 mm UEW ENAMELED RECTANGULAR COPPER WIRE FLAT COPPER WINDING WIRE FOR MOTOR WINDING
Meet design requirement of lower height, smaller size, lighter and more power.The wire is widely used in electronice, military electronic, spaceflight.
Bigger surface area than round wire at the same cross section, reducce skin effect effectively, decrease current loss, that/s better to adpat high frequency transduction.
High space factor and fill in ratio, greatly reduce resistance, pass bigger current, get higher Q value that is better to adapt high current load.
The product that use rectangular wire has such features: simple in structures, good heat dissipation ,stable performance, stablegood consistency. Maintain stable temperature rise current and saturation current in high frequency and high temperature environment anti EMI, small vibration, low noise and install in high density.
APPLICATIONS
1) 120 degree flat enameled wire for oil-immersed transformer
2) 130,155,180 degree flate enameled wire are widely used in all kinds of magnet coil
3) 200 degree flat enameled wire works constantly in high temperature
4) 240 degree flat enameled wire for magnet coils of aviation,military and marine application.
Specification
Type:SFT-HB/UEW J180
Size:0.7x0.15mm
| Characteristics | Standard | Test Result |
| Appearance | Smooth Equality | Smooth Equality |
Conductor Diameter
| Width | 0.7 | ±0.030 | 0.718 |
| Thickness | 0.15 | ±0.050 | 0.151 |
Thickness of Coating layer
| Width | >0.01 | 0.022 |
| Thickness | >0.01 | 0.023 |
Thickness of Bonding layer
| Width | >0.002 | 0.003 |
| Thickness | >0.003 | 0.007 |
| Overall Diameter(without bonding layer) | Width | 0.730-0.760 | 0.74 |
| Thickness | 0.170-0.180 | 0.174 |
Overall Diameter
| Width | 0.77 | 0.0.743 |
| Thickness | 0.185 | 0.181 |
| Pinhole | ≤3hole/m | 0 |
| Elongation | ≥25 % | 39% |
| Flexibility and Adherence | No crack | No crack |
| Conductor Resistance (Ω/km at 20℃) | 158-179 | 164.65 |
| Breakdown Voltage | ≥0.5KV | 0.8KV |
| Heat shock | No Crack | No Crack |
| Bond Strength(N) | >30 | 80 |
| Conclusion | | Pass |
