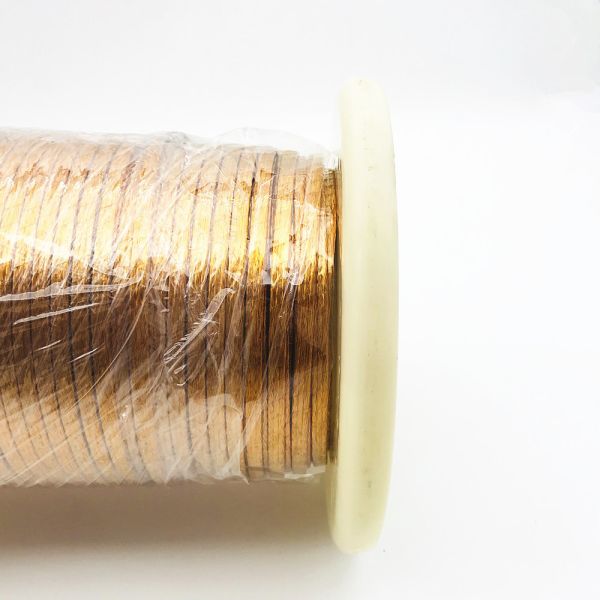

APED COPPER ENAMELED WIRE 0.05 X 120 HIGH FREQUENCY FLAT LITZ WIRE
The term “litz wire” is derived from the German word litzendraht, meaning “woven wire.” Generally defined, it is a wire constructed of individually film-insulated wires bunched or braided together in a uniform pattern of twists and length of lay.The multistrand configuration minimizes the power losses otherwise encountered in a solid conductor due to the “skin effect,” or the tendency of radio frequency current to be concentrated at the surface of the conductor.In order to counteract this effect, it is necessary to increase the amount of surface area without appreciably increasing the size of the conductor. It is also essential to position each individual strand in the litz construction in a uniform pattern, moving from the center to the outside and back in a given length.Even properly constructed litz wires will exhibit some skin effect due to the limitations of stranding. Wires intended for higher frequency ranges require more strands of a finer gauge size than litz wires of equal cross-sectional area, but composed of fewer and larger strands.Polyurethane and Polyurethane Nylon are the films most often used for insulating individual strands because of their low electrical losses and their solderability.Other insulations shown on pages 2 and 3 can also be used. Litz wires are generally further insulated with a single or double wrap or serving of a textile typically nylon — but are also available unserved.
DESIGN
New design or recommmendation according to customer requirements for size,turns,current,power and environmental parameters.
TIPS
Customers to use auotmatic line machine, semi-automatic machine, cutting coiling, please inform us, so that we can provide the best solution. component methods are divided into two kinds: with glue, without glue
