2uew 0.06mm Solderable Enameled Magnet Wire Ultra Fine

Name: 2uew 006mm Solderable Enameled Magnet Wire Ultra Fine
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.06mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 5kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Magnet wire

Diameter : 0.06mm

Insulation : Polyurethane

Thermal rating : 155/180

Conductor material : Copper

Size Range : 0.011mm-1.2mm

Contact Now

2UEW 0.06mm Solderable Magnet Wire Ultra Fine Enameled Copper Wire

Features:

1.Solid enough, the wire is not easy to be broken
2.Insulation thickness can be customized
3.Wire can reach almost 0 pinhole
4.High consistency
5.The wire is even and tidy, which is convenient for users to wind
6. Low temperature soldering
7. Bonding method options: Hot air,Solvent and others


Characteristics	Technical requests	Test result			Result
Surface	Good	OK	OK	OK
Coating Thickness	≥ 0.008 mm	0.0100	0.0120	0.0110	OK
Overall Diameter	≤ 0.074 mm	0.0700	0.0720	0.0710	OK
Conductor Resistance	≤6.415Ω/m	6.009	6.081	6.013	OK
Elongation	≥ 14 %	21.7	22.6	21.9	OK
Breakdown Voltage	≥500 V	1769	1961	1886	OK
Pinhole Test	≤ 5 holes/5m	0	0
Continuity	≤ 15 hole/30m	0	0	0	OK
Test Items	Technical Requests	Results
Adhesive	Coating layer is good	OK
Solder Ability	390℃ ±5℃ Smooth	OK
Heat Shock	175±5℃/30min no crack	OK

2uew 0.06mm Solderable Enameled Magnet Wire Ultra Fine

Product Tags:

2uew enameled magnet wire

0.06mm enameled magnet wire

enameled copper magnet wire ultra fine

Wholesale 2uew 0.06mm Solderable Enameled Magnet Wire Ultra Fine from china suppliers

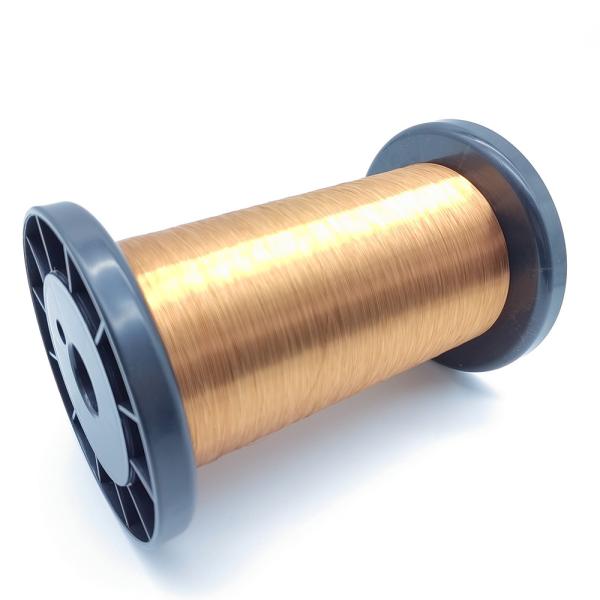

2uew 0.06mm Solderable Enameled Magnet Wire Ultra Fine Images
